CB182E0475KBC
Manufacturer:
Kyocera AVX
Mfr.Part #:
CB182E0475KBC
Datasheet:
Description:

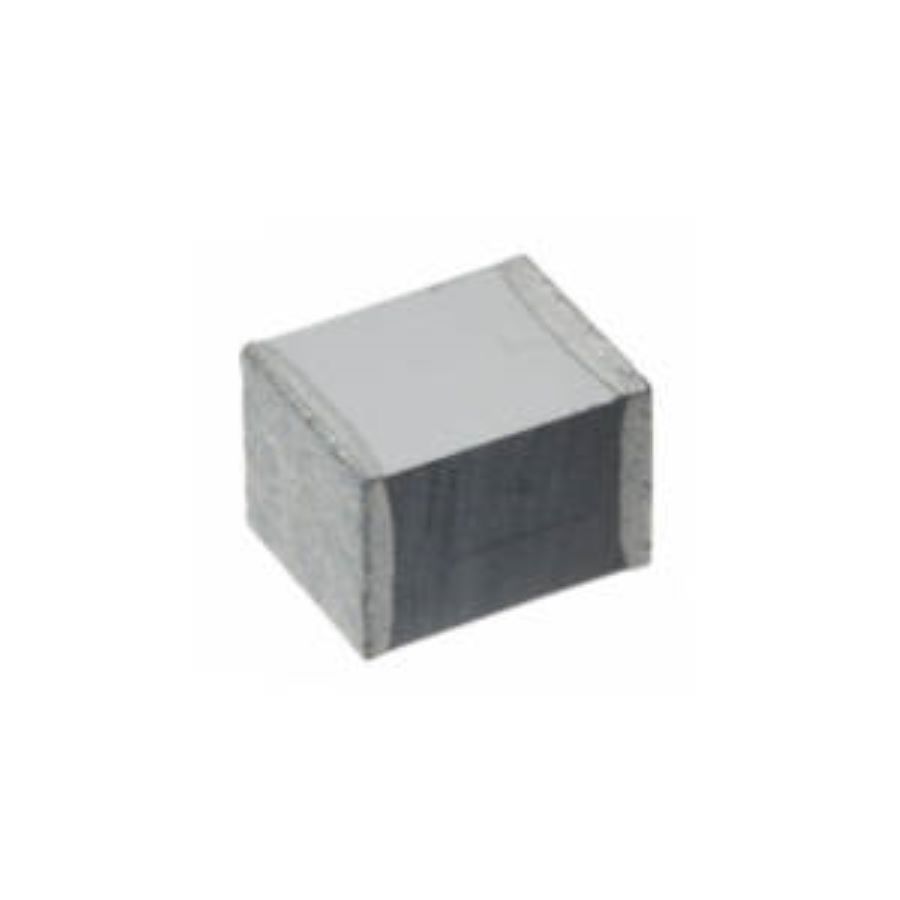

Film Capacitors SMD/SMT 4.7 µF 10 % Polyethylene Terephthalate(PET) Voltage Rating (DC):100 V Voltage Rating (AC):63 V
| Parameter | Value |
|---|---|
| Capacitance | 4.7 µF |
| Voltage Rating (DC) | 100 V |
| Tolerance | 10 % |
| Length | 15.3 mm |
| Width | 13.6906 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyethylene Terephthalate(PET) |
| Voltage Rating (AC) | 63 V |
| Number of Pins | 2 |
| Dissipation Factor | 0.8 % |
| Height | 7.1 mm |
| Packaging | Reel |
| Voltage Rating | 100 V |
| Depth | 13.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Dielectric Material | PET |
| Contact Plating | Tin |
Stock: 33
Distributors
pcbx
pcbxUnit Price$3.39150
Ext.Price$3.39150
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.39150 | $3.39150 |
| 10 | $3.35195 | $33.51950 |
| 25 | $3.31286 | $82.82150 |
| 50 | $3.27422 | $163.71100 |
| 100 | $3.23603 | $323.60300 |
| 300 | $3.19829 | $959.48700 |
| 500 | $2.89137 | $1445.68500 |
